Product Description

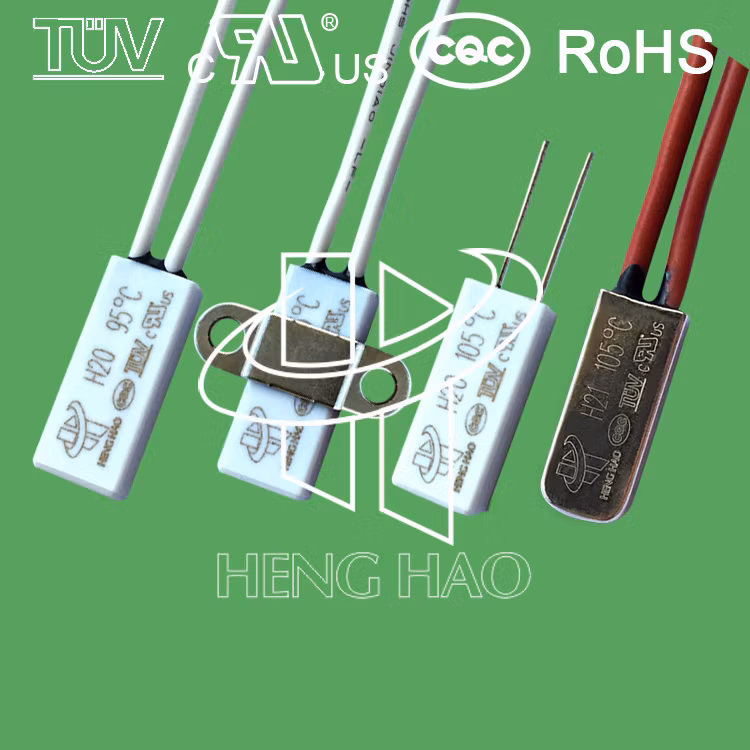

- H20,H21 series thermostat's Principle and structure
-
- H20,H21series thermal protector's Specification
- Switch type: normally closed, normally opened.
- Operating Voltage / Current: AC250V / 5A; AC125V / 8A
- Operating Temperature: 40~150ºC (one step for every 5°C)
- Standard Tolerance: ±3°C / ±5°C / ±7°C
- Reset temperature: operating temperature decrease by 15-45°C
- Contact Closure resistance: ≤50mΩ
- Insulation resistance: ≥100mΩ
- Electric strength: AC1500V/1min free from phenomena of break down and flashover.
- Service life: 10000 times
| Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A |
| Open temperature | (30~150)±5°C; 5°C a step |
| Reset temperature | 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement. |
| Life times | 10000 times |
| Contact Closure resistance: | ≤50mΩ |
| Insulation resistance: | ≥100mΩ |
| Electric strength: |
|
| UL File no | E487478 |
| CQC certificate no | CQC16002142880 |
| TUV certificate no | B160592241002 |
- H20,H21series thermal protector's Dimension
| Model | Case | Length(mm) | width(mm) | High(mm) | Vol.&Current | Lead wire |
| H20 | Plastic | 18.5 | 8 | 4 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A | #20 3135, end 5mm half tripping, length is 70mm, or according to customer's require |
| H21 | Metal | 18.5 | 7.3 | 3.8 | ||
| H21 | Metal | 20 | 8 | 4 | AC250V 20A | #16 3135 |
| BH-A1D | Metal | 15 | 6.6 | 3.2 | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V | #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or according to customer's require |
| BH-B2D | Plastic | 15 | 7.1 | 3.8 | ||
| BH-TB02B-B8D | Plastic | 15 | 5.2 | 2.4 | DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A | 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer's require |
- H20,H21series temperature protector's Application
The product UL,CQC,TUV and RoHS certification approval.
