Basic Info.
Model NO.
JPSK-303ESK
Automation
Semi-Automatic
Suitable for
Aluminum, Copper
Voltage
Customized
Power
12kw
Certificate
CE & ISO9001
Motor
3*4kw
Suitable Industry
Electrical Switchboard
Process Material
Copper/Aluminum Busbar
Transport Package
Plywood Case Packing
Specification
1780*1400*1300
Trademark
JPSK
Origin
China
HS Code
8462429000
Production Capacity
2000/Year
Product Description

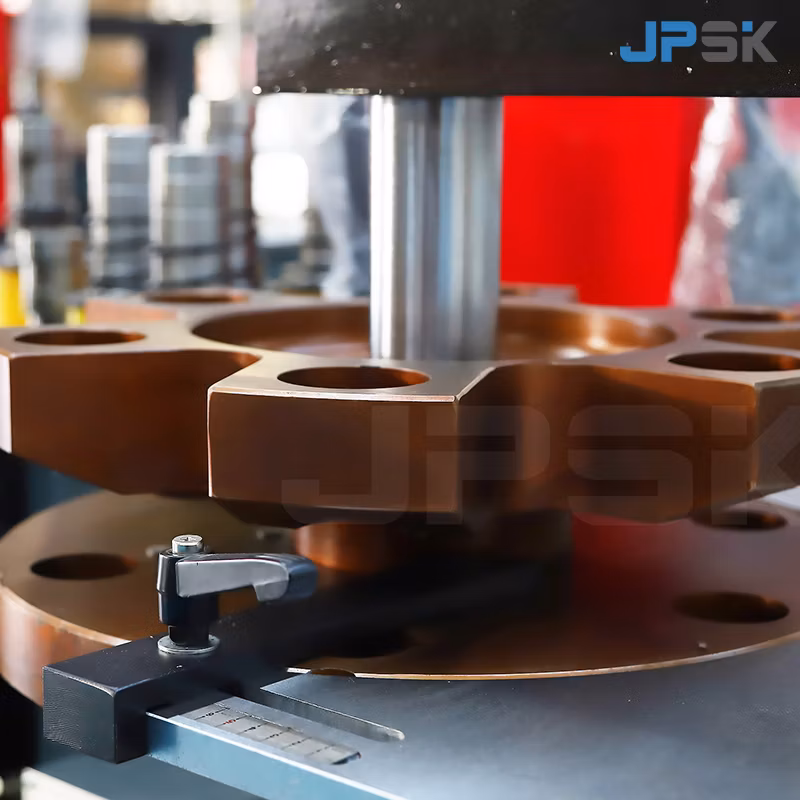

JPSK-303ESK Hydraulic Copper Busbar Processor for Electrical Switchboard
This series JPSK-303ESK Hydraulic Copper Busbar Processor for Electrical Switchboard. It have three functions: cutting punching and bending. Three functions can be wotking at the same time. so that it can shorten the processing time and improve the production efficiency.
It is used to process copper and aluminum busbars in different specification. By relative operation unit it can and quickly do all kinds of processing to copper and aluminum Busbar, such as shearing, punching(circular hole and oblong hole), flat/Vertical bending and knurling.change different mold to do special processing to copper bar, such as flat press, embossing, cable connector process, and can do cutting,flat Crushing pushing and bending.
| Function | Model | JPSK-303ESK | JPSK-503ESK | JPSK-803ESK |
| Punching | Max. punching force (Kn) | 300 | 500 | 800 |
| Max. punching diameter range (mm) | 4.3-25 | 4.3-30 | 4.3-34 | |
| Max. thickness (mm) | 12 | 16 | 20 | |
| Max. width (mm) | 160 | 200 | 250 | |
| Cutting | Max. cutting thickness (mm) | 12 | 16 | 20 |
| Max. width (mm) | 160 | 200 | 250 | |
| Horizontal bending | Max. bending force (Kn) | 300 | 500 | 800 |
| Max. thickness (mm) | 12 | 16 | 20 | |
| Max. width (mm) | 160 | 200 | 250 | |
| Vertical bending | Max. thickness (mm) | 10 | 10 | 10 |
| Max. width (mm) | 100 | 120 | 120 | |
| Min angle (degree) | 90° | 90° | 90° | |
| Power | kw | 3×4kw | 3×5.5kw | 3×5.5kw |
| Bending precision | Bending precision | ±1° | ±1° | ±1° |
| Repeat bending precision | ±0.5° | ±0.5° | ±0.5° | |
| Out dimension | mm | 1780×1400×1300 | 1950×1560×1390 | 1950×1560×1450 |
| Weight | kg | 1400 | 1700 | 2100 |
